About components

All components in CET Designer are picked from the Components area on the left-hand side of the program window and placed in the drawing area. You can decide if you would like to place the components in the 2D view or in the 3D view. This chapter will describe component symbols and basic component behavior.

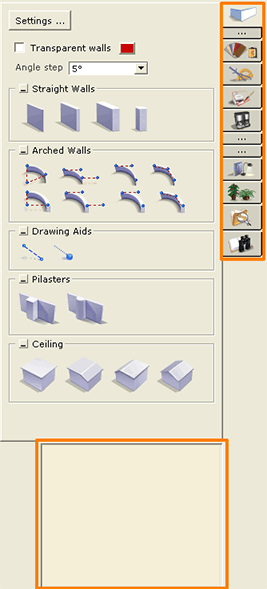

The component area on the left hand side of the program window

Figure 1
