The Security tab

On the Security tab you can make the following settings:

  1. Auto backup field: Select this checkbox if you wish CET Designer to save auto-backup files of your drawings. Read more >>

  2. Auto-save field: Select this checkbox if you wish CET Designer to save your work periodically while in process. Read more >>

    - Number of auto-save files per drawing: Set how many auto saved drawings CET Designer should save per drawing (5 drawings are default).

    - Minutes between auto save: Decide how often your drawing should be auto saved during your work process. Choose a time interval between 5 - 90 minutes (9 minutes are default).

  3. Use file mirroring field: Select this checkbox if you wish to "mirror" saved files to various locations (i.e. local or network). Type the locations where you want to save your file mirroring.

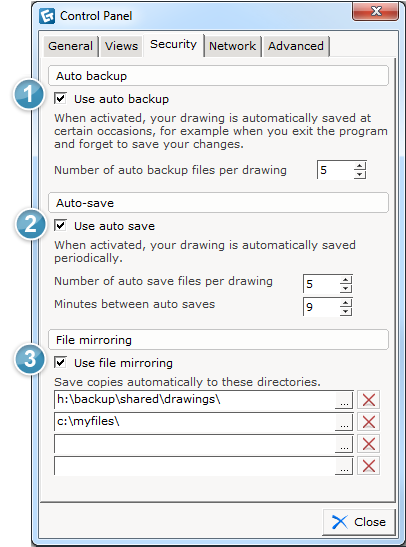

Figure 1: The Security tab in the CET Designer control panel.





Note

  • Some users have experienced moments when CET Designer has seemed like frozen while auto saving in the background; this will not happen anymore. When an auto save is about to be done, CET Designer will try not to interrupt your work. If this is not possible you will receive a message telling you that CET Designer is in the process of auto saving your work and that this may take a moment.
