Line

Using the Line tab, you can position any number of components in a row, in the direction of your choice.

Example:

You want to position six workstations (consisting of a chair and a table) along a wall which is 10 meters long (Figure 1 and 2).

Follow the instructions below:

1. Position a table and a chair in the drawing area as shown in Figure 1.

2. Make the table and the chair into a temporary group.

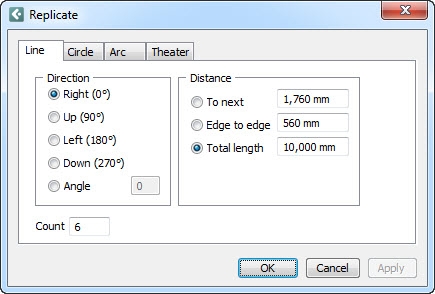

3. Choose Replicate from the Arrange. menu. The Replicate dialog is displayed.

4. As you are starting from the study area on the left, you check the Right box in the field Direction.

5. In the Distance field, enter 10,000 millimeters as the Total length.

6. In the Count field, enter the number of study areas you want, in this case six.

7. Click on OK or Apply.

Figure 1

The result is shown in Figure 2.

Figure 2

In the Direction field, as well as choosing Right, Up, Left and Down, you can also enter an Angle.
