Mirroring and Copying Components

Using the Mirror and copy components tool, you can mirror and duplicate items at the other side of a line.



Example

You would like to mirror and duplicate two windows that you have placed in a wall.

Follow the instructions below:

  1. Select the two windows by using Ctrl or the Select Rectangle on the toolbar (see Figure 1).

  2. Select Mirror and copy components under Drawings Tools on the Line Drawing 1 tab and move the mouse pointer to the drawing area. A blue line appears by the mouse pointer.

  3. Move the mouse pointer to the middle of one of the walls and click. Then move the mouse pointer to the middle of the opposite wall and click (see Figure 2).

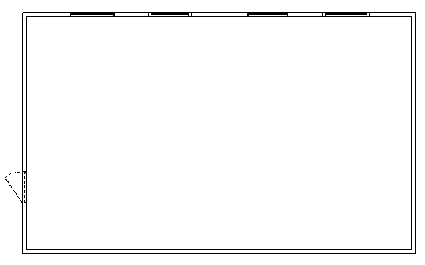

  4.  The windows are mirrored and duplicated to the other side of the blue line (see Figure 3).

         Figure 1

 Figure 2

       Figure 3



Note:

  • When you are in the mirror command, you can press the spacebar to toggle between the Select Rectangle and the Mirror and copy components command.
