The Auto camera is a tool that helps getting a camera position without having to first place a separate camera in the drawing. As such, the Auto camera is not at all visible in the drawing area. The Auto camera angle is set in the Render & Camera Settings dialog, which is accessed from the tool bar:

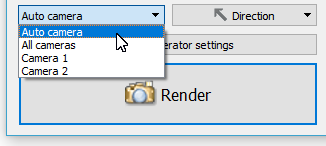

To render using the Auto camera, make sure Auto camera is selected in the dropdown menu far down to the left in the Render & Camera Settings dialog:

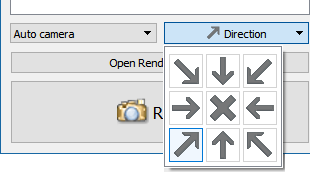

The Direction button shows the Auto camera's current direction (here NW) and clicking the button lets you change the direction:

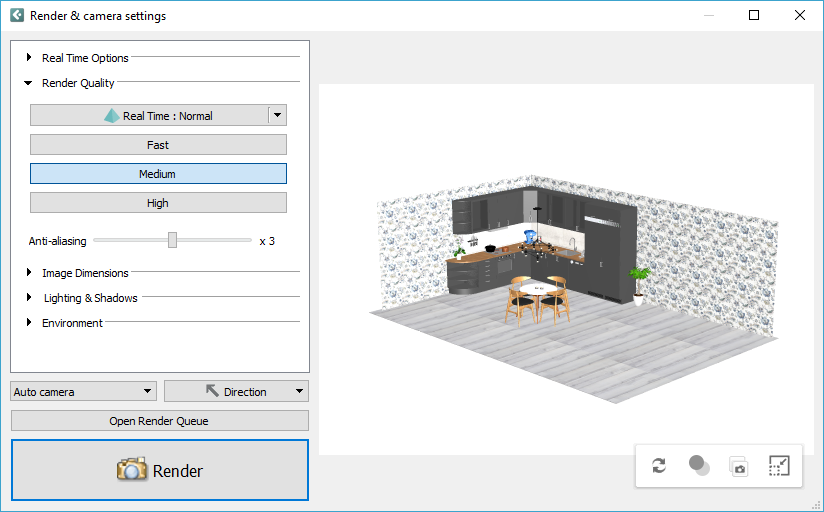

Having selected Auto camera from the list, the real time view in the Render & Camera Settings could look something like this:
You can now adjust the settings for Real Time Options, Render Quality, Image Dimensions, Lighting & Shadows, and Environment and then proceed to render the image.
